Digital Multimeter True RMS

Brand TECPEL | Model DMM-136B | 🇹🇼 Taiwan
Digital Multimeter True RMS
DMM-136B - 1
DMM-136B - 2
DMM-136B - 3
DMM-136B - 4
DMM-136B - 5
DMM-136B - 6
DMM-136B - 7
三用電錶 數位多功能電錶 TECPEL DMM-136B 數位電表 真有效值 自動量程

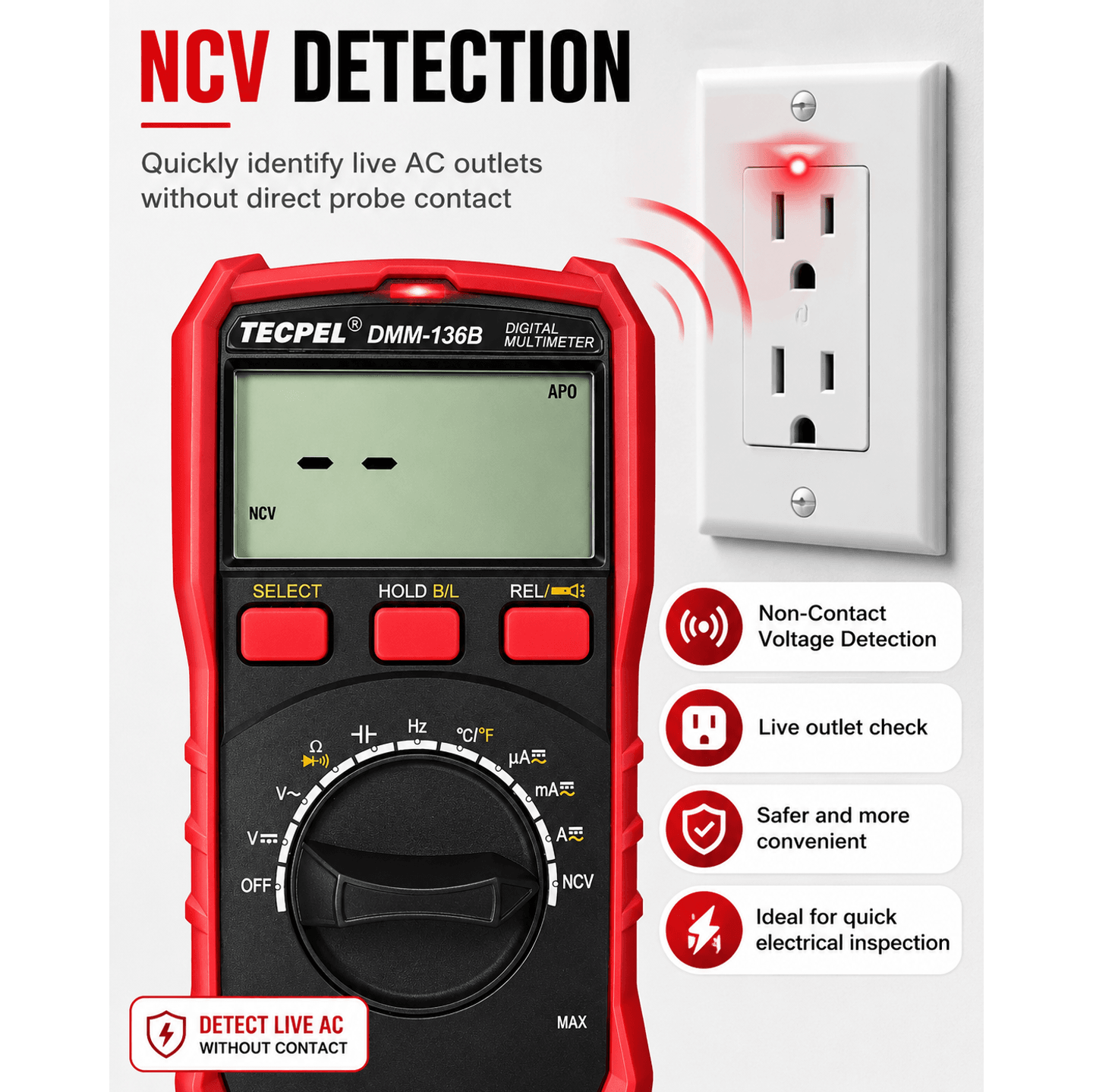

The DMM-136B True RMS digital multimeter is suitable for industrial environments. It features auto-ranging and multiple measurement functions, including voltage, current, resistance, and more, with a built-in flashlight and NCV function.
Price NT$ 600
Out of Stock
Views: 6

Description

This DMM-136B digital multimeter provides a 5999-count display with true RMS measurement, auto-ranging, and multiple testing options, making it an ideal tool for engineers and technicians.

Specifications

  • Display Counts5999
  • Sampling Rate3 times/second
  • DCV Accuracy600mV ±(0.5%+5), 6V/60V ±(0.5%+3), 600V ±(1.0%+10)
  • ACV Accuracy6V/60V ±(0.8%+5), 600V ±(1.2%+10)
  • DCA Accuracy600uA/6000uA ±(1.0%+10), 60mA/600mA ±(1.2%+8), 6A/10A ±(2.0%+5)
  • ACA Accuracy600uA/6000uA ±(1.0%+10), 60mA/600mA ±(1.5%+15), 6A/10A ±(3.0%+10)
  • Resistance Accuracy600Ω ±(0.8%+5), 6kΩ/60kΩ/600kΩ/6MΩ ±(0.8%+4), 60MΩ ±(1.2%+10)
  • Capacitance Measurement10nF ±(5.0%+40), 100nF/1uF/10uF/100uF ±(3.5%+20), 2mF ±(5.0%+40)
  • Frequency Measurement10Hz/100Hz/1kHz/10kHz/100kHz/2MHz ±(1.0%+10)
  • Temperature Measurement-20℃~1000℃ <400℃ ±(1.0%+5), ≥400℃ ±(1.5%+15)

Features

  • ContinuityYes
  • True RMSYes
  • Auto RangeYes
  • BacklightYes
  • Extra FeatureFlashlight
  • Non-Contact Voltage (NCV)Yes
  • Diode TestYes
  • Data HoldYes

Attributes

  • Dimensions146mm * 72mm * 50mm
  • WeightApproximately 232g (including batteries)
  • Battery Type1.5V AAA battery x 2
  • Operating EnvironmentTemperature 0 to 50°C, Humidity below 70%RH
  • Storage EnvironmentTemperature -20 to 60°C, Humidity below 80%RH
