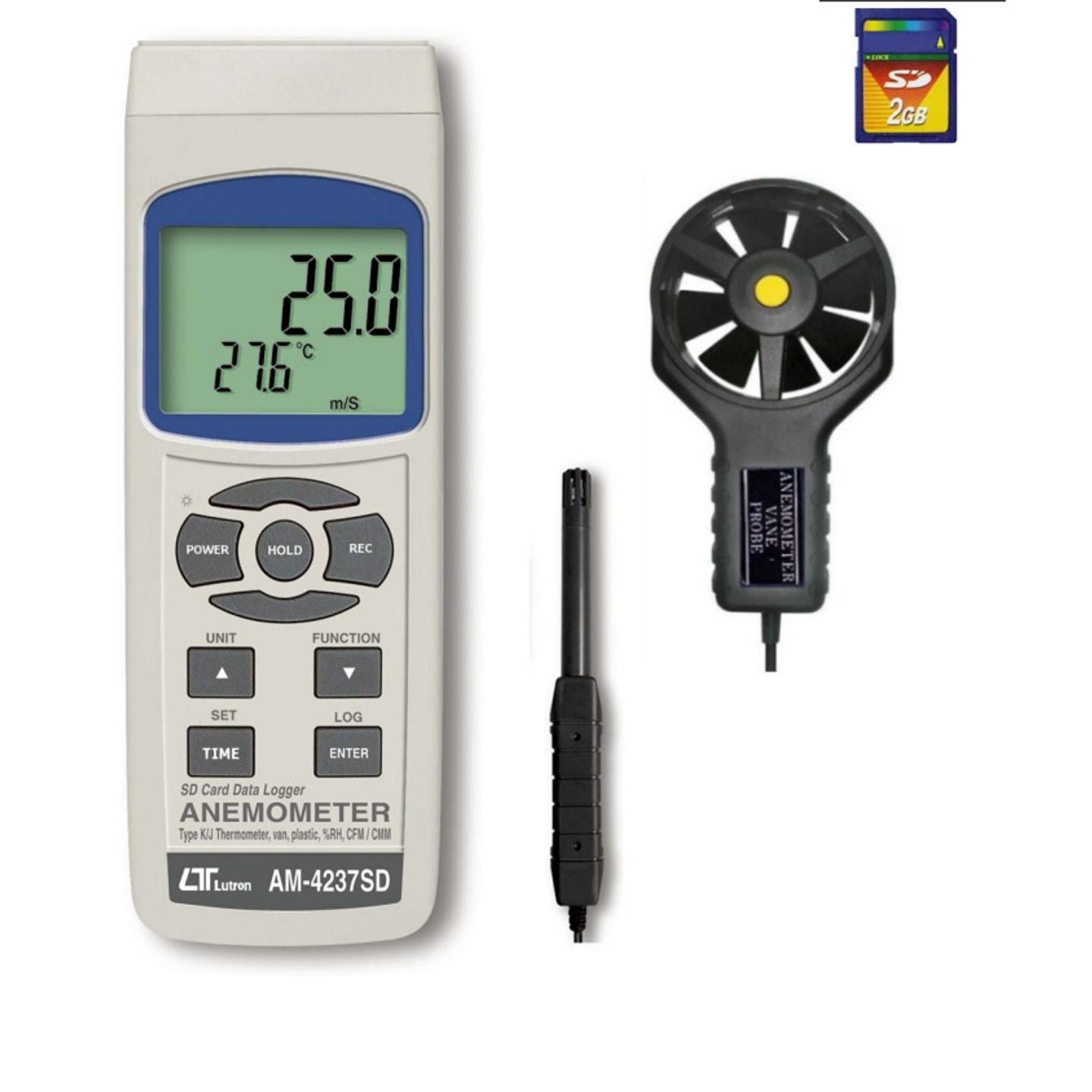

Anemometer SD Card Real-Time Data Recorder
Brand
LUTRON
|
Model
AM-4237SD
|
🇹🇼 Taiwan
This anemometer integrates multiple functions, including air velocity, humidity, and dew point measurement, with SD card data logging, suitable for detailed environmental monitoring applications.
Display & Power
LCD with green backlight
Power: UM3/AA (1.5 V) × 6 or DC 9 V adapter
Power consumption approx. 15 mA (normal) or 36 mA (with SD logging)
Auto-power-off or manual shutdown selectable
Data-hold plus max/min memory
Mechanical Design
Heavy-duty ABS plastic vane probe
Low-friction ball-bearing ensures accuracy at high and low air speeds
Separate probes for flexible operation
Main-unit size 182 × 73 × 47.5 mm
Weight 347 g (meter only)
Interfaces & Accessories
RS232 and USB PC interface
Standard accessories: instruction manual, anemometer probe, humidity probe, hard carrying case (CA-06)
Optional accessories: 2 GB SD card, Type K thermocouple probe, AC-DC 9 V adapter, USB-01 cable, UPCB-02 RS232 cable, SW-U801-WIN and SW-E802 data-acquisition software
Price
NT$ 9,923
Out of Stock
Views: 1
Description
The AM-4237SD Anemometer is a sophisticated instrument for measuring air velocity, humidity, and dew point, ideal for HVAC systems and environmental monitoring.
Measurement FunctionsTwo included probes: Anemometer and Humidity/Temperature
3-in-1 meter: Anemometer, Humidity/Temperature, Type J/K Thermocouple Thermometer
Air-velocity units: m/s, ft/min, km/h, knots, mile/h
Air-temperature units: °C / °F
Airflow measurements: CMM, CFM
Humidity range: 10 % – 95 % RH
Dew-Point and Wet-Bulb temperature measurement
Thermistor sensor for air-temperature—fast response
Supports Type K and Type J thermocouples
Datalogging & MemoryReal-time SD-card datalogger with 1 – 3600 s interval
Built-in clock and calendar for time stamping
Manual-log mode supports position tags 1 – 99
Data read directly into Excel—no software needed
SD-card capacity supported: 1 GB – 16 GB
Specifications
- Sensor TypeHall sensor & Thermistor
- Wind Speed0.4 - 25.0 m/s ±2%
- Operating Temperature0 to 80 °C ±0.8°C
- Humidity Range10 ~ 95 %RH ±3% RH
- Resolution0.1 m/s, 0.1°C, 0.1% RH
Features
- Recording Interval1 to 3600 seconds adjustable
- Max/MinYes
- Recording ModeAuto/Manual
- Alarm FunctionNo
- Analog BarNo
Attributes
- Operating TemperatureTemperature 0 ~ 50°C, Humidity below 85%RH
- Storage TemperatureTemperature -20 ~ 60°C, Humidity below 80%RH
- Elevation LimitationBelow 2,000 meters
- Safety RatingRS-232 & USB
- Power Supply1.5V AA batteries x 6 or DC 9V adapter
- AccessoryAnemometer probe, Humidity/Temp. probe, Instruction manual, Carrying case
