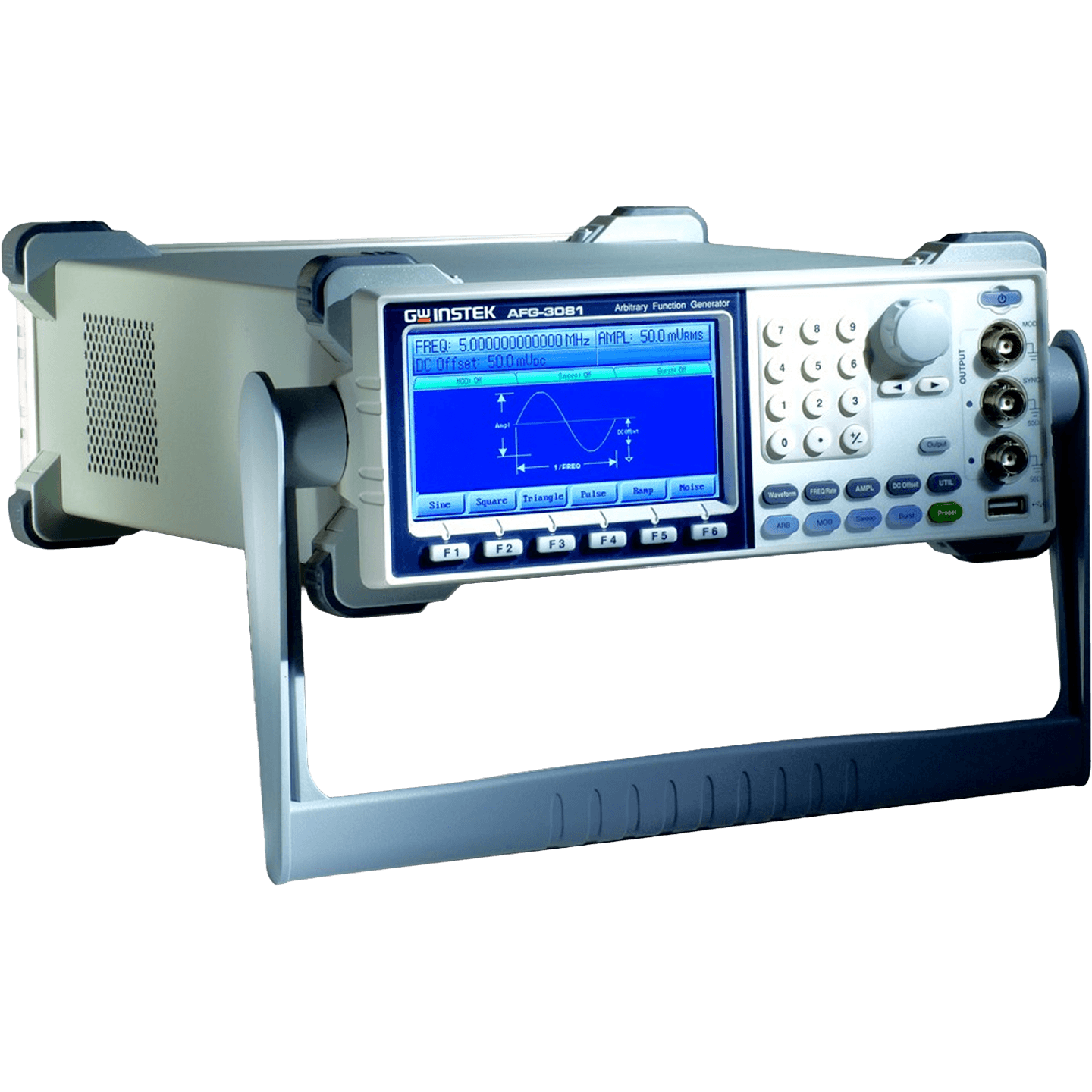

Arbitrary Waveform Function Generator

Brand GWINSTEK | Model AFG-3081 | 🇹🇼 Taiwan
Arbitrary Waveform Function Generator
AFG-3081 - 1
AFG-3081 - 2
AFG-3081 - 3
High-performance arbitrary waveform function generator, supporting multiple output modes such as AM, FM, PWM, FSK, Sweep, and Burst, flexibly meeting R&D and testing needs. Equipped with a 4.3-inch TFT LCD high-resolution display, waveform information is clear and intuitive, making operation smoother.
Out of Stock
Views: 4

Description

The GWINSTEK AFG-3081 is a high-performance arbitrary waveform function generator designed for electronic circuit testing and design. It provides excellent frequency stability and supports a variety of waveform generation, making it an ideal choice for engineers and laboratories in both development and educational applications.

Specifications

  • Frequency Range1uHz ~ 80MHz
  • Sampling Rate200MSa/s
  • Memory Depth1M points
  • WaveformsSine wave, Square wave, Sawtooth wave, Pulse wave, Noise wave, etc.
  • Amplitude Range10 mVpp ~ 10 Vpp (50Ω) / 20 mVpp ~ 20 Vpp (open circuit)
  • Output Impedance50Ω
  • Rise/Fall Time<8 ns
  • Frequency±1 ppm
  • Total Harmonic DistortionDC to 20 kHz < 0.2%
  • PWM Modulation Offset0% ~ 100%

Features

  • AM/FM/PWM/FSK/Sweep/Burst SupportYes
  • Display4.3-inch TFT LCD, high resolution 480×272
  • Safety RatingUSB, RS-232, GPIB
  • Power10 groups of 1M memory

Attributes

  • Power SupplyAC100-240V, 50/60Hz
  • DisplayMultifunction interface display
  • DimensionsPortable design, easy to carry
  • CertificationEN 55011, IEC-61326-1
