Discontinued Icon Timer Power Meter
Brand
PRODIGIT
|
Model
2045J
|
🇹🇼 Taiwan

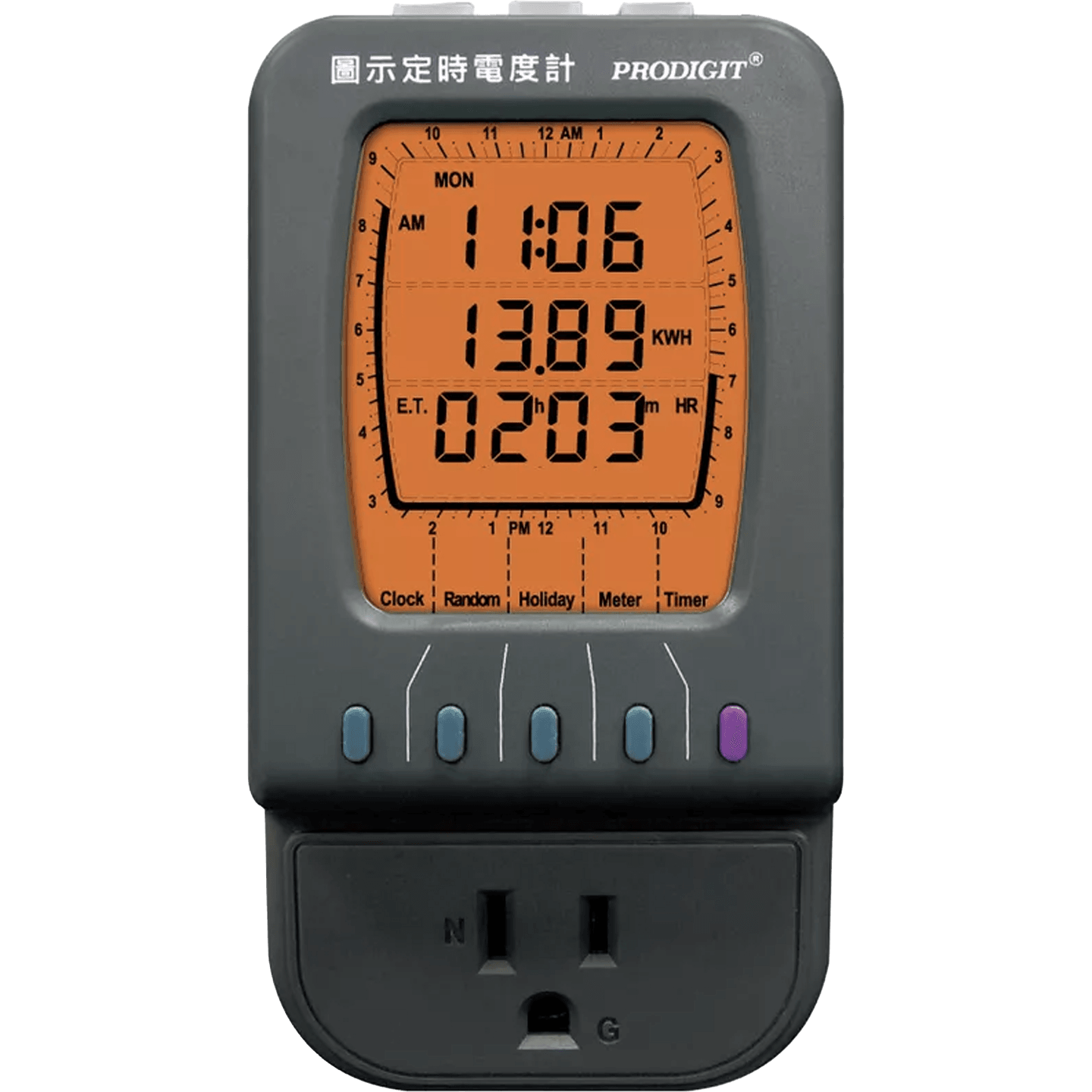

The 2045J timer power meter offers accurate power monitoring and timing functions,
with built-in overcurrent, overvoltage, and undervoltage protection,
providing manual or automatic output control.
It features a backlit display for ease of use in low light environments,
and includes a low battery indicator to ensure equipment safety.
This product has been discontinued. Specifications and documents remain available for reference, but ordering is no longer possible. Please contact our sales team for alternatives.
Views: 52
Description
The 2045J Icon Timer Power Meter is designed for Taiwan's standard 110V / 15A power environment, providing power monitoring and timing functions suitable for home, office, and industrial applications. This device accurately measures voltage, current, and power while incorporating multiple protection mechanisms to ensure safe operation.
Specifications
- Output Voltage108.0~132.0 V ±0.1%
- Output Current0.00~15.00 Amp ±0.5%
- Power Measurement0.0~1980 Watt ±1%
- 用電度數0.00~9999 KWH
- 累計時間000天(d) 00時(h) 00分(m) ~ 999天(d) 23時(h) 59分(m)
Features
- Over Current Protection (OCP)是
- Over Voltage Protection (OVP)是
- Low Battery Indicator是
- Backlight3 LED（橘紅光）
- Output Control手動或自動
Attributes
- Output TerminalsThree-hole, 1 piece
- Power SupplyAAA battery x 3
- No Spark SwitchOperates at zero power on or off
